Basic usageΒΆ

OpenHydroponics is designed to be modular and flexible, allowing you to extend its functionality as needed.

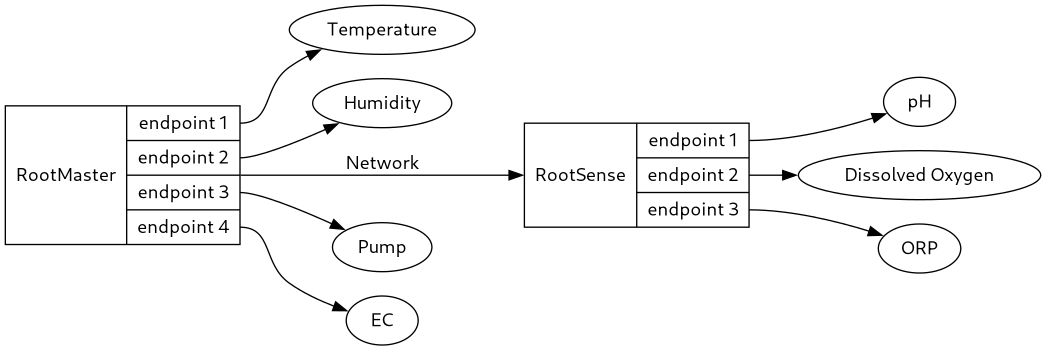

All OpenHydroponics setups creates a network with one or several nodes. Normally a node is a device connected to each other with a cable. The nodes may have one or several endpoints extending the functionality of the node. The endpoints may be sensors, actuators or other devices.

digraph OverviewDiagram { rankdir=LR; RootMaster [ shape=record, label="{ { <root>RootMaster } | { <e1> endpoint 1 | <e2> endpoint 2 | <e3> endpoint 3 | <e4> endpoint 4 } }" ]; RootSense [ shape=record, label="{ { <root>RootSense } | { <e1> endpoint 1 | <e2> endpoint 2 | <e3> endpoint 3 } }" ]; node [shape=ellipse]; RootSense:e1 -> pH; RootSense:e2 -> "Dissolved Oxygen"; RootSense:e3 -> ORP; RootMaster:e1 -> Temperature; RootMaster:e2 -> Humidity; RootMaster:e3 -> Pump; RootMaster:e4 -> EC; RootMaster -> RootSense:root [ label=Network ; minlen=2; ]; }
